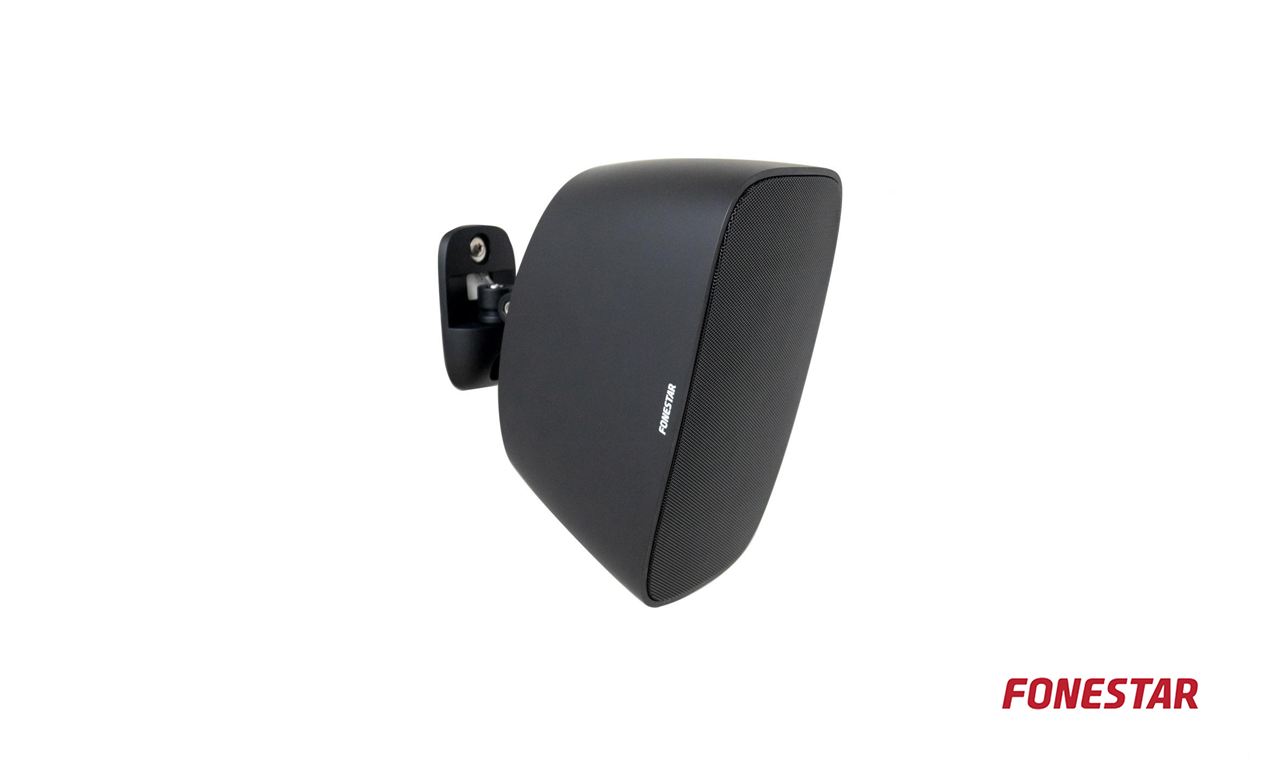

Fonestar SONORA 4TN PA loudspeaker – Black

69

In stock

Fonestar SONORA-4TN PA loudspeaker, designed for PA and background sound applications. The excellent finish and elegant design allow for perfect integration into any space.

In stock

Description

SONORA-4TN

Based on our extensive experience in the sound sector, FONESTAR has created SONORA. SONORA is a series of loudspeakers especially designed for PA and background sound applications. The excellent finish and elegant design allow for perfect integration into any space. These speakers are fully suited for outdoor use as they have an aluminium grille and protection against water (IP-66) and marine environments. In addition, SONORA provides excellent sound quality with crystal-clear, distortion-free sound. All the necessary accessories for quick and easy installation are included: an adjustable mounting bracket with weather treatment, stainless steel screws, and a steel safety cable. APPLICATIONS For PA and background sound applications in public places such as restaurants, cafes, supermarkets, shopping malls, etc. TECHNICAL DATA 30/15/7.5/3.75 W RMS@100 V and low Z: 8 Ω Loudspeakers 1 x 4” polypropylene woofer 1 x 1″ tweeter Response 120-20,000 Hz Sensitivity 84 dB at 1 W/1 m Protection IP-66

FEATURES
Low-impedance loudspeaker with 100 V line transformer.
Prepared for outdoor use, waterproof and rustproof materials.

POWER
60 W max., 30 W RMS

LOUDSPEAKERS
1 x 4″ polypropylene woofer
1 x 1” tweeter

RESPONSE
120-20,000 Hz

IMPEDANCE
30 W RMS@100 V (333 Ω)
15 W RMS@100 V (667 Ω)
7.5 W RMS@100 V (1,333 Ω)
3.75 W RMS@100 V (2,667 Ω)
Low Z: 8 Ω

SENSITIVITY
84 dB @ 1 W/1 m
73 dB @ 1 W/4 m

MAXIMUM SOUND PRESSURE
98 dB @ max. W/1 m
87 dB @ max. W/4 m

COVERAGE ANGLE
270º@500Hz, 130º@1kHz, 85º@2kHz, 70º@4kHz (-6 dB)

PROTECTION
IP-66
IEC 60068-2-11 Environmental test (Salt mist)

MATERIAL
Aluminium grille
Mount with weathering treatment
Stainless steel screws

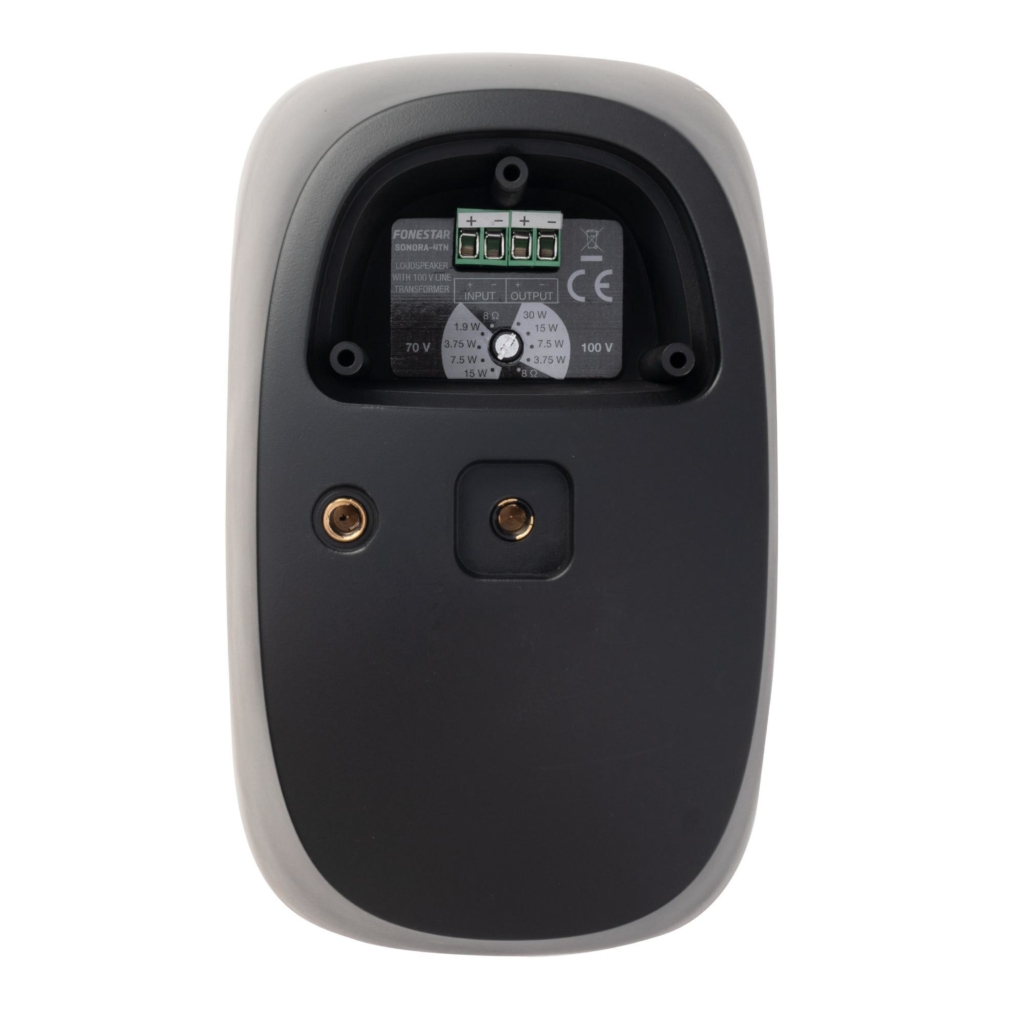

SWITCH
W selector in high Z and low Z

CONNECTORS
Euroblock for cable 0.25 – 2.5 mm2 cross-section

TEMPERATURE RANGE
-10ºC to 60ºC

DIMENSIONS
125 x 202 x 125 mm depth

WEIGHT
1.5 kg

ACCESSORIES
Adjustable mounting bracket ± 60º in all directions.
Steel safety cable

Additional information

Brand

Fonestar

Speaker Type

Indoor/outdoor
