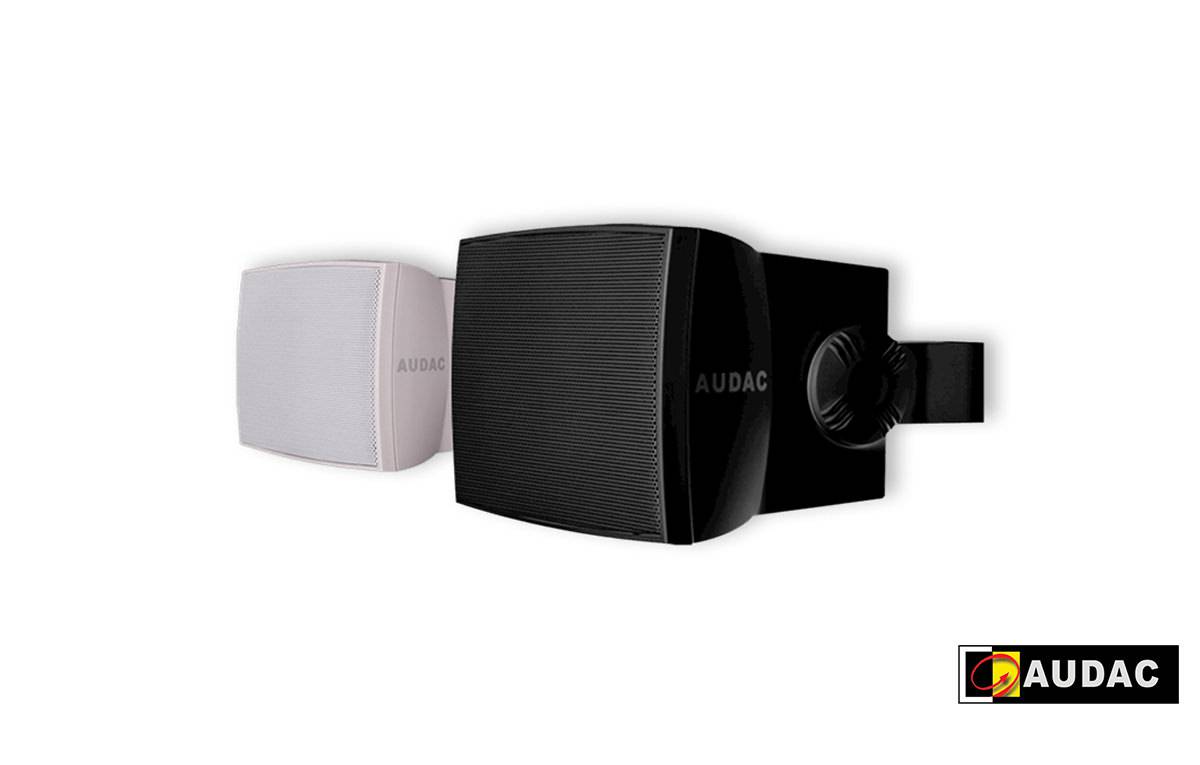

Audac WX302

66

Call for availability

Wall mounted indoor 2-way speakers, 8Ω, 30W RMS, 60W peak, Frequency Response (± 3 dB)90 Hz – 18 kHz, H/V Dispersion 100°

SKU: N/A Categories: , Tag:

Description

Audac WX302

Price is per speaker (Not per pair)

2-Way 3″ Wall speaker – 8 Ohm / 100 Volt – 30 Watt RMS / 20 Watt transformer

Available in Black or White.

The WX302 is a powerful 2-way performance speaker suitable for a wide variation of applications, ensuring true-to-nature, high fidelity reproduction of music and speech.  It is fitted with an 1” dome tweeter and a 3” low frequency loudspeaker, capable of delivering a power of 30 Watt. It can be used in standard 8 Ohm systems but also in 100V PA systems with power taps for 20 Watt, 10 Watt and 5 Watt.

The elegant shaped synthetic enclosure is available in three different colors (Black, White and Silver), making it blend into any environment, going from standard indoor home to special indoor design interiors.  The included mounting bracket allows horizontal and vertical mounting as well as focusing of the speaker, and an integrated advanced protection network protects the tweeter against overload.

Features
Powerful 2-way wall speaker
True-to-nature sound reproduction
Available in 3 different colours
Vertical or horizontal mounting
Mounting bracket is included
Easy installation
Aluminium grill
Adjustable power tapping

Applications
Wide variation of indoor applications
Private houses
Halls, Pubs
Restaurants
Stores
Warehouses

System Specifications
Speaker Type 2-Way
Max. power 60 W
RMS power 30 W
Impendance 8 Ohm
Line Transformer Taps 1 20 W / 500 Ohm
2 10 W / 1000 Ohm
3 5 W / 2000 Ohm


Sensitivity (1W/1m) 85 dB
Sound Pressure Max W/1m @ 8 Ohm 100 dB
Sound Pressure Max W/1m @ 100 V 95 dB
Frequency Response (± 3 dB) 90 Hz – 18 kHz
Frequency Range (-10 dB) 60 Hz – 20 kHz
Cross-over Type Passive Built-in
Cross-over Frequency 2,5 kHz
Horizontal Dispersion 100°
Vertical Dispersion 100°

Product Features
Dimensions (Width x Height x Depth) 199 x 129 x 120 mm
Weight net 1,66 Kg
Drivers HF 1”
LF 3“
Construction ABS housing
Grill Type Aluminium grill
Mounting & Handling Mounting bracket
Available Colours White (RAL 9010) WX302/W
Black (RAL 9005) WX302/B
Silver (RAL 9006) WX302/S



Additional information

Brand

Audac

Speaker Type

Bookshelf / Wall-Mounted, 100 Volt

Colour

Black, White
