These revolutionary two-way pendant loudspeakers with excellent off-axis performance are designed for background and foreground music applications with open architectures and high ceilings.
Description
ALTI SERIES
Pure sound, hanging around.
These revolutionary two-way pendant loudspeakers with excellent off-axis performance are designed for background and foreground music applications with open architectures and high ceilings

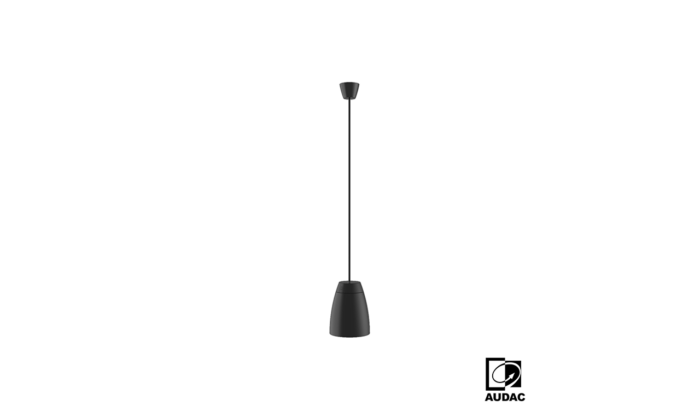

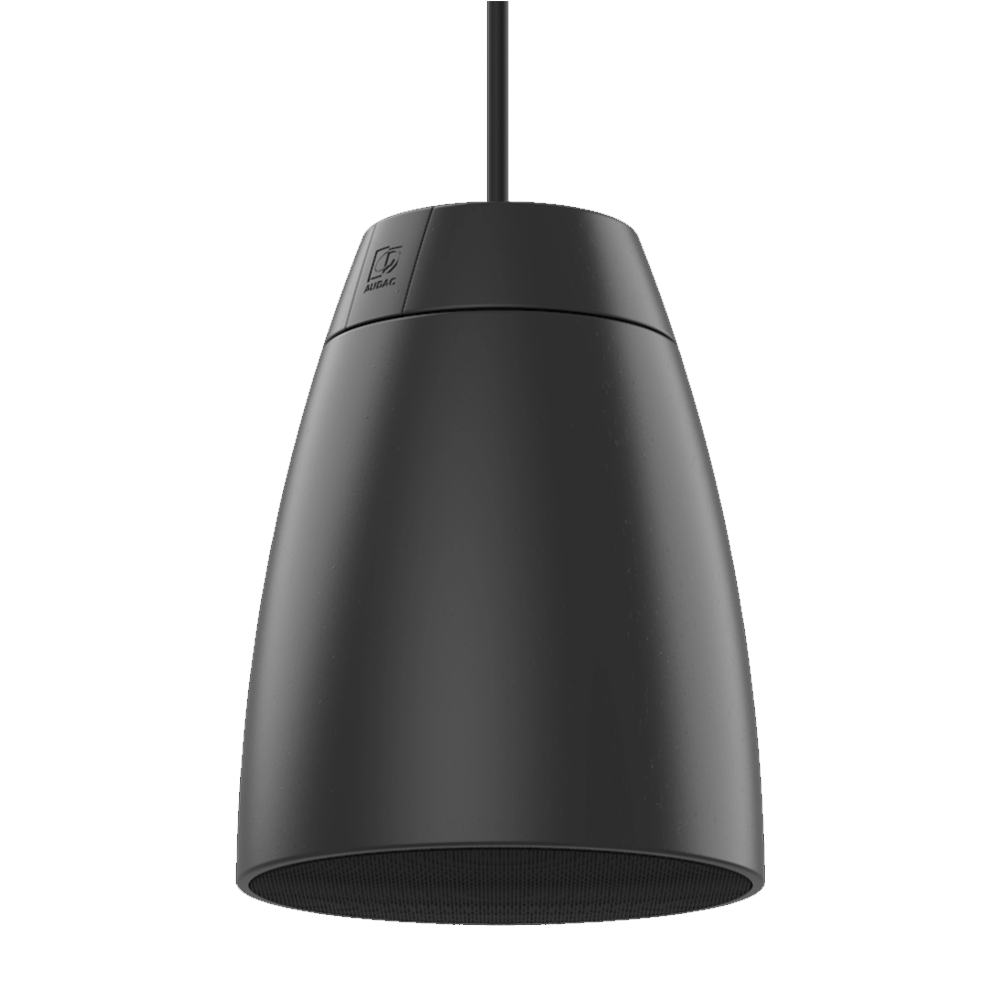

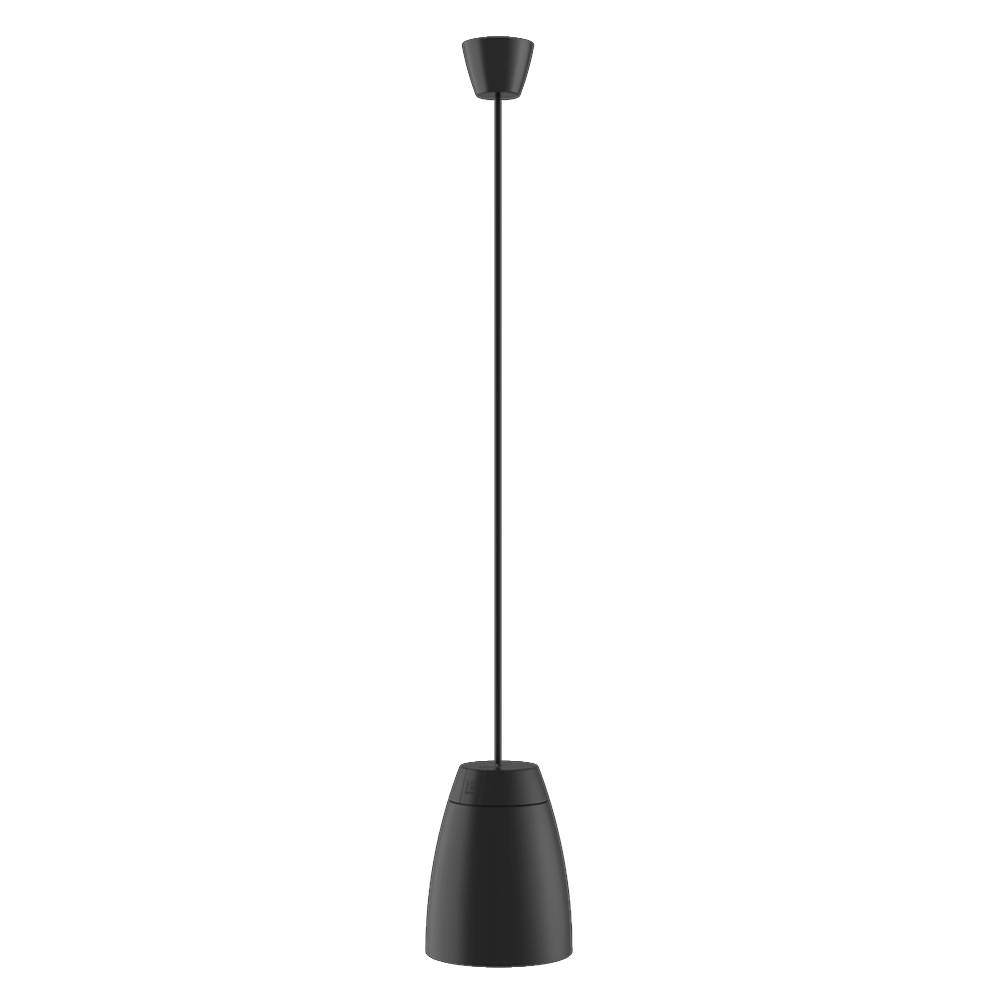

ALTI6
2-way 6" pendant speaker
- Ceiling suspension
- Innovative & unique design
- Wide opening angle
- Dual Gripple™ locking system
- Suspension cable with dual steel core
- Ceiling cable cover
- Rotary switch for 15W, 30W, 60W and 16 Ohm tappings
“Pure sound, hanging around.”

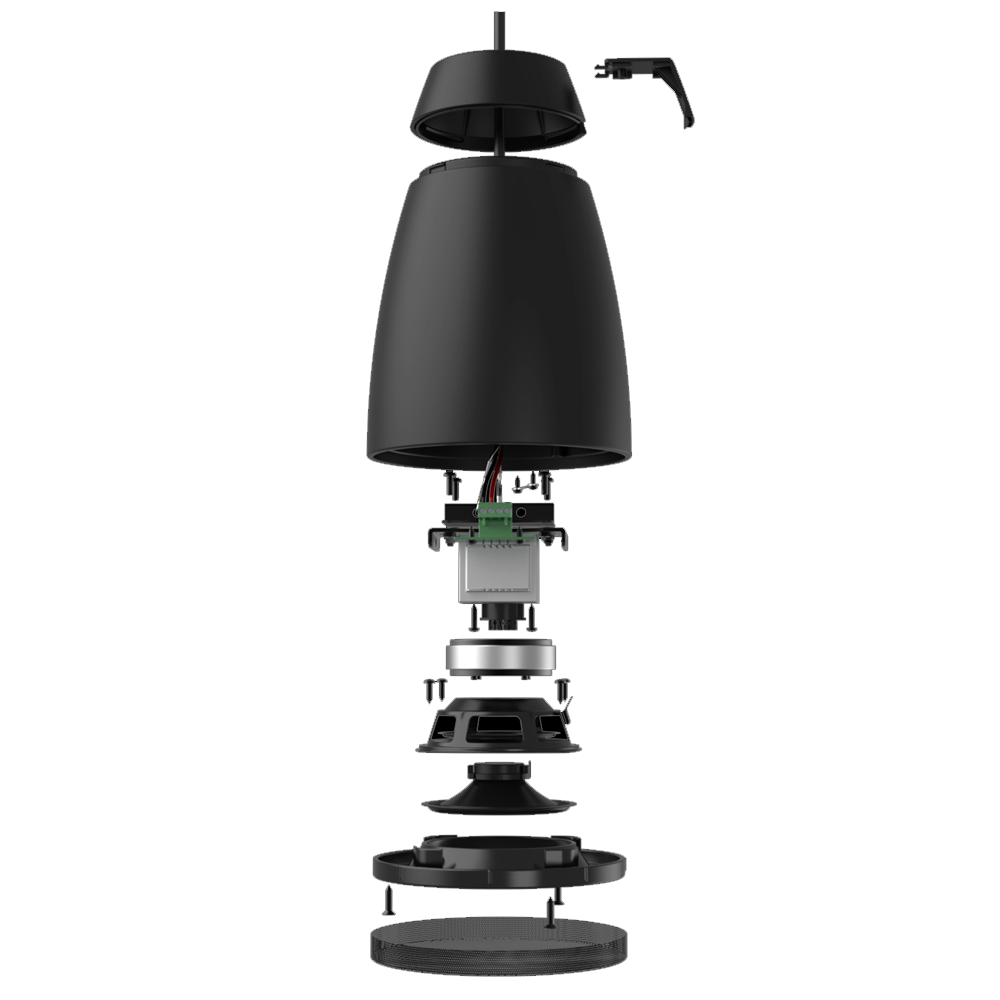

The ALTI6 is a 2-way pendant loudspeaker featuring a 6.5” driver combination with a coaxially mounted 1” soft dome tweeter and is fitted with a phase plug for excellent off-axis performance.
The 2-way combination with a high-quality polypropylene enclosure and acoustic engineering craftsmanship guarantees premium performance for demanding applications. A continuous power handling of 60 Watt (RMS) and maximum power handling of 120 Watt is achieved. Connections are made through a terminal block connector behind the rear cover, accompanied with a power tap selector switch for the tapping of a 70V/100V line transformer with tappings for 60W, 30W, 15W and a 16 Ohm bypass connection.
Mounting the speaker is done through a connection cable with two integrated steel cores for suspending with an additional drop safety. Fixation is made through two snap-hooks on one end and a dual Gripple™ fixation on the other end. The included cable length of 3.5 meters offers possibilities for a wide variety of ceiling heights. An innovatively designed rear cover of the speaker can be placed after installation and hides the connection and suspension on the speaker end. The ceiling end connections are covered through a cable cover.
DUAL GRIPPLE™ LOCKING SYSTEM
Secure and fast mounting
The ALTI series’ connection cable, steel suspension and safety wire are all stored in one single outer jacket. Fixation is made through two snap hooks on one end and a Dual Gripple™ locking system on the other end. The included cable length of 3.5 meters offers possibilities for a wide variety of ceiling heights.

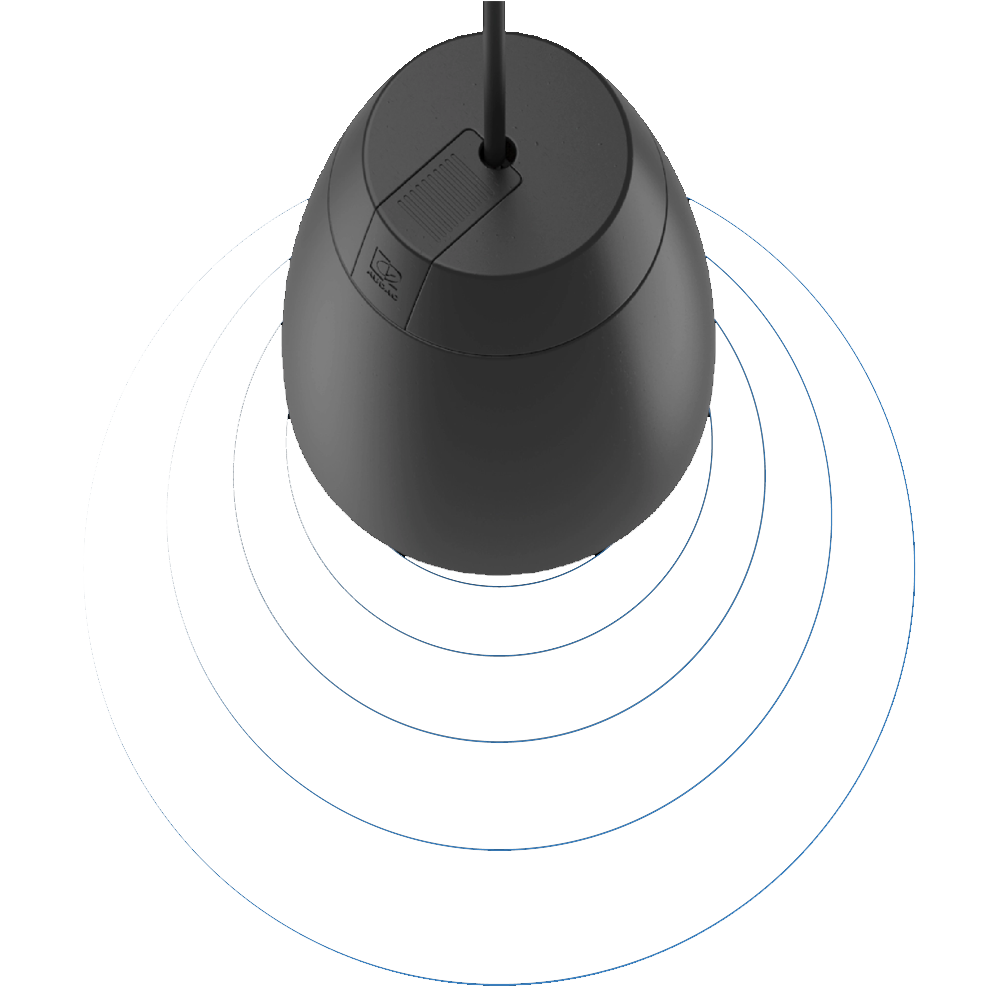

EXCEPTIONAL DISPERSION
Wide opening angle
The wide opening angle of the speaker guarantees an exceptional dispersion in all different kinds of applications and locations with high ceilings and large open spaces. The carefully matched components and construction guarantee optimal coverage over the entire frequency range.

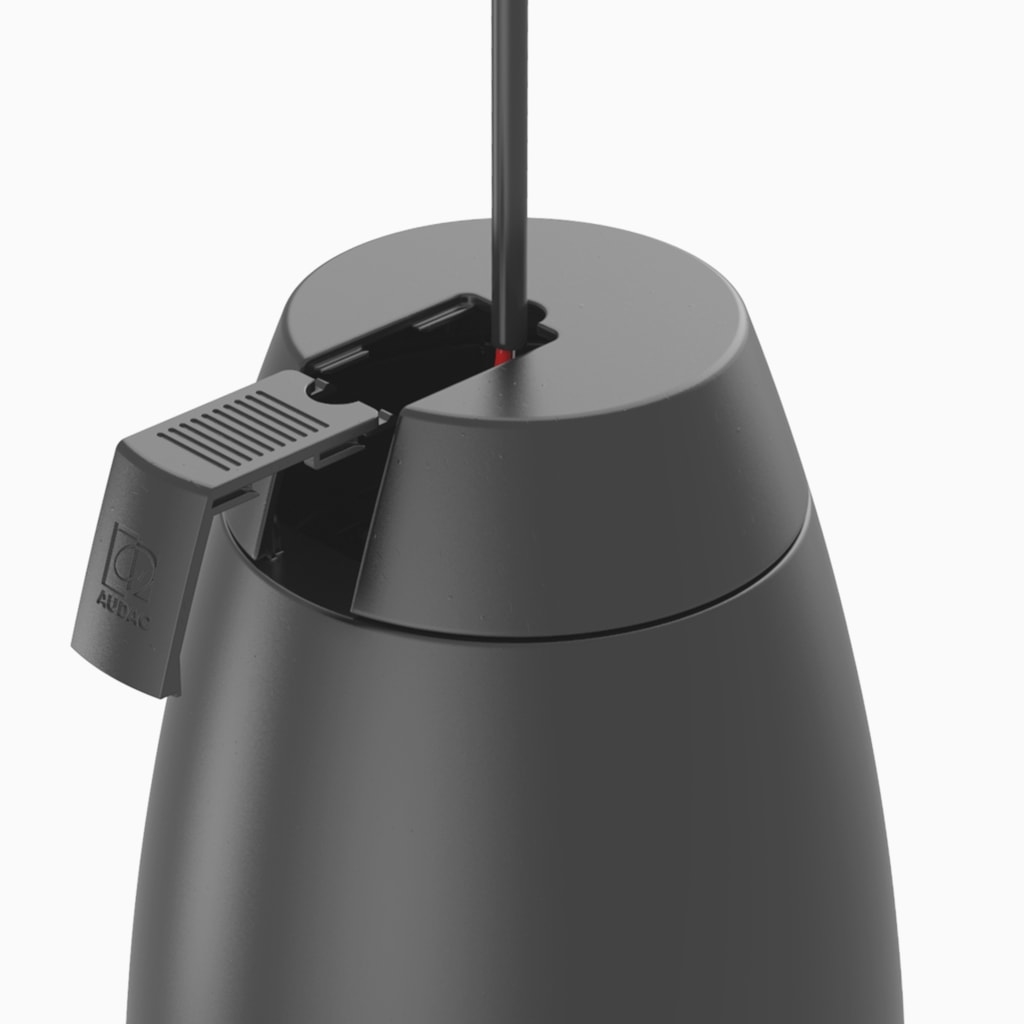

SLIDECAP™ INNOVATION
Fast and easy installation
An innovatively designed rear cover hides the connection and suspension on the speaker end. It can easily be attached and detached by sliding, even after installation. Leading to one neat and enclosed entity.
EASY CUSTOMISABLE
Plug-and-play multi tapping

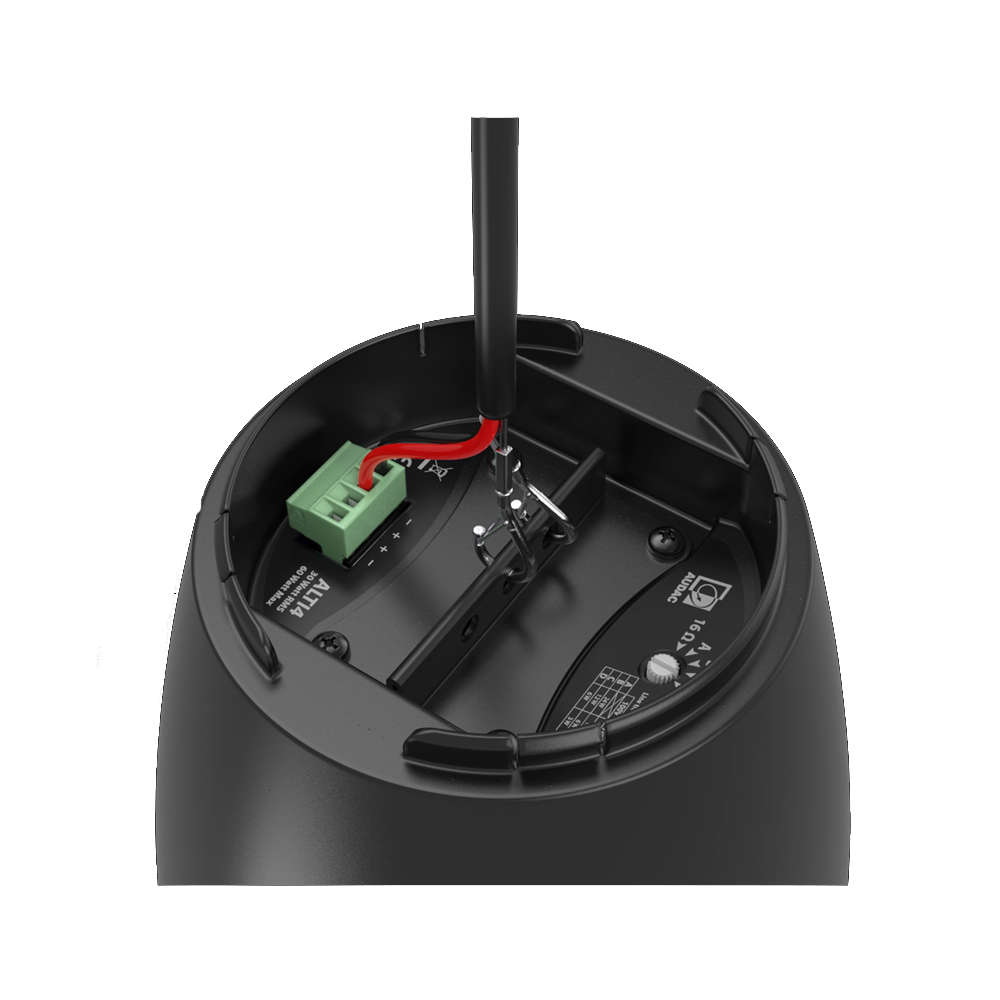

A rotary selector switch located behind the rear cover selects the setting between low impedance and 70V/100V use, while adjustments in tappings are easily made, even after already installed and connected.

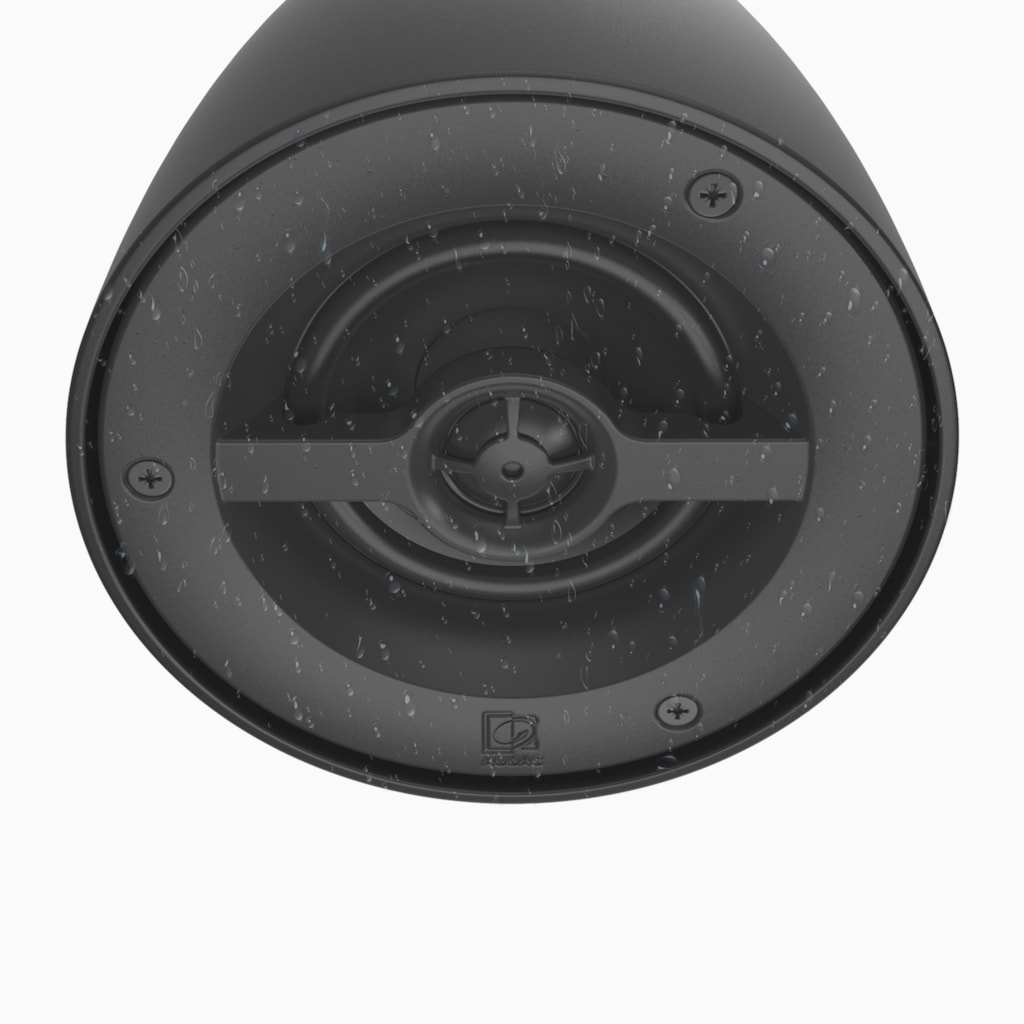

SUITABLE FOR OUTDOOR APPLICATIONS
Moisture resistant driver
Thanks to a special coating applied to the drivers, the ALTI series are also suitable for use in applications with high levels of humidity such as outdoor terraces, bathrooms or many more!
Technical Specifications
Available models
ALTI6/B
ALTI6/W
Black version

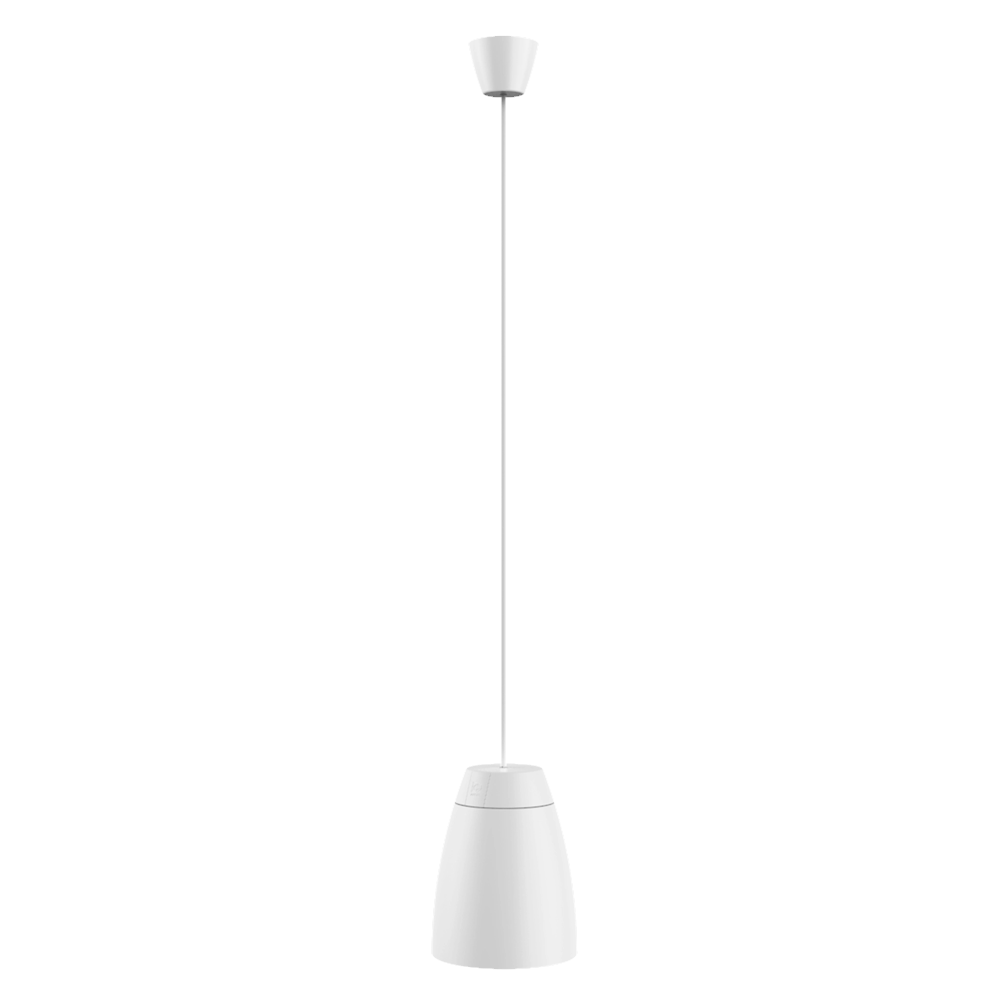

White Version
System specification
Speaker type
Peak power handling
Program power handling
RMS/AES power handling
Impedance
Line Transformer Tappings
1
2
3
4
Dispersion Conical
Connectors
Sensitivity (1W/1m)
Sound Pressure (Max. W/1m) @ 16Ω
Frequency Range (-10dB)
Frequency Response (± 3 dB)
2-way coaxial
240W
120W
60W
16Ω
–
83 Ω – 100 V / Not used – 70 V / 60 W
167 Ω – 100 V / 60 W – 70 V / 30 W
333 Ω – 100 V / 30 W – 70 V / 15 W
667 Ω – 100 V / 15 W – 70 V / 7.5 W
115° (average 500 Hz to 5 kHz @ -6 dB)
4-pin Euro Terminal Block
83dB
101dB
61.5Hz- 20Khz
75Hz- 17Khz
Product Features
Dimensions
Connection cable length
Construction
Front Finsih
Mounting & handling
Accessories Included
Weight
230 x 302 mm (Ø x H)
3.5m
Polypropylene
Aluminium grill
Dual snap hook and dual Gripple™ hanger
Connection cable with dual steel core, snap hook & open ends – 3.5 meter
2 Gripple™ hangers
3.39Kg
Recommended Applications
Bar & Restaurants
Retail
Education
Corporate
Sporting facilities
Additional information
| Colour | Black, White |
|---|---|
| Brand | Audac |
| Speaker Type | Ceiling / Flush Mount, 100 Volt, Background Speaker |
